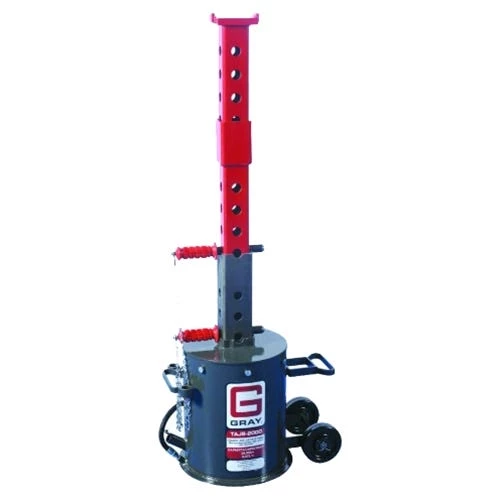

Gray 10 Ton Air Jack Stand with Extension (17.5-52.5″) TAJS-2000

Gray

20,000 TAJS-2000 Truck Air Jack Stand with Extension TAJS-2000 W/ Extension

The TAJS-2000 Truck Air Jack Stand is a perfect solution for spring, tire and brake work. Ideal for lifting loaded trailers, waste haulers, cement trucks, ag equipment, straight trucks, school buses and class 8 tractors.

FEATURES:

• Removable handle – for ease of movement and storage
• 5″ diameter wheels to help with portability
• 10′ steel encased air-hose
• Thin walled cylinders manufactured by Gray in the U.S.

SPECIFICATIONS:

Capacity	20,000 lb	9,071.85 kg
Minimum Start Height	17-1/2″	44.45 cm
Maximum Lift Height w/extension	52-1/2″	133.35 cm
Maximum Lift Height w/o extension	37-1/2″	95.25 cm
Cylinder Bore	12″	30.48 cm
Required Air Pressure	200 PSI	13.8 Bar
Overall Length w/o Handle	19″	48.26 cm
Overall Length w/Handle	48″	121.92 cm
Wheel Diameter	5″	12.7 cm
Stroke	10″	25.4 cm
Inside Saddle Width	4-1/2″	11.43 cm
Overall Saddle Width	5-1/4″	13.34 cm
Extension Tubes	Square	Square
Handle Length	29″	73.66 cm
Shipping Weight	138 lbs	62.60 kg
