Gray Wireless Portable Lift System WPLS-190 19,000 lbs WPLS-190

Gray

Wireless Portable Lift System WPLS-190 19,000 lbs GRAWPLS-190

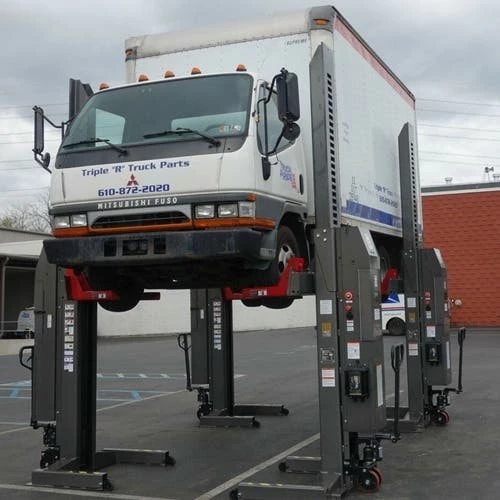

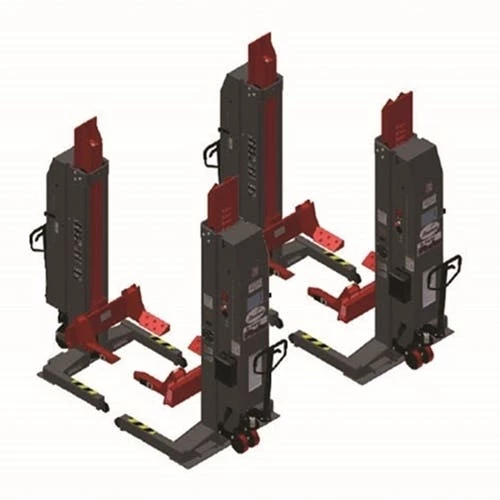

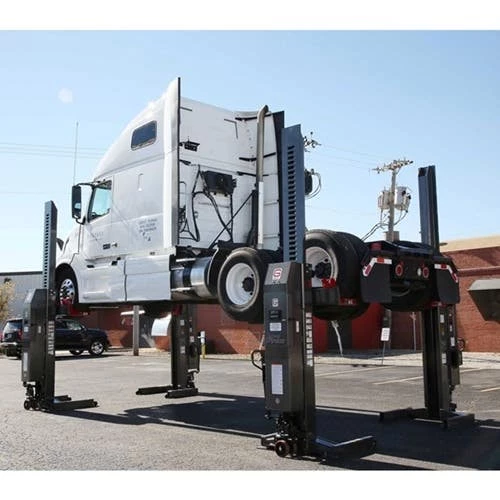

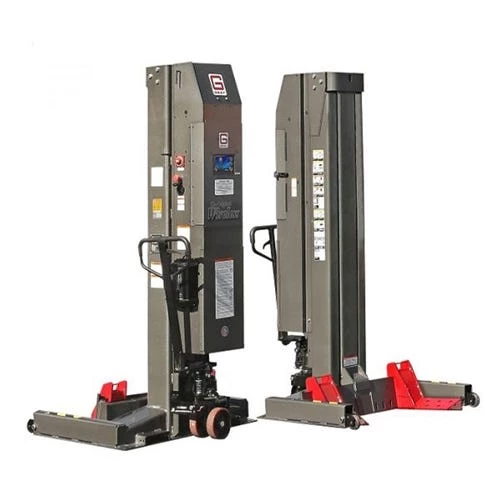

The WPLS-190 is a 19,000 lb capacity; 24 volt mobile column. The WPLS -185 features the industry’s original wireless communication system and state of the art touch screen graphic control system; providing the user with the most reliable and safe lifting environment. The WPLS-190 has no external wires or cords providing clear safe access to the undercarriage of the vehicle. When used at full operating height the WPLS-190 provides the user with a lift height of 69 inches of free-and-clear access perfect for preventative maintenance; transmission removal and installation; clutch replacements; and with single and paired operation make easy work of axle; brake; and wheel work.

FEATURES:

• 19,000 lb capacity for a systemset of four
• 114;000 lb capacity for a systemset of six
• For use on heavy motor coaches; recreational vehicles; also; fire; waste and concrete trucks.
• *Standard 24 volt operating system provides 20-30 lifting cycles before battery recharge
• No high voltage requirements
• Eliminates the hidden up-frontpower installation costs
• Allows technicians to take the lifting system to the job
• No worries about interrupted power service
• A 110 volt on-board multi-stagecharging system is built into each unit. Simply plug in to anordinary 110 outlet to recharge the power system. The charger is rated at an input of 100-230VAC 4 Amps.

INCLUDES:

• The Patented Gray Wireless Portable Lift System provides your technicians an average work height of 81 inches free-and clear access under the vehicle. No cables to connect; navigate around; roll over or replace.
• 200 channel capable operating system with patent pending controls
• Moving and aligning individual lift units is made easy by virtue of the precise balanced design; spring loaded wheel components and the versatile lift and steer handle design.
• The system maintains synchronization employing digital encoders to ensure maximum reliability.
• Integral holding valve provides precise control
• 10 screen wifi enabled computer operates column

SPECIFICATIONS:

Capacity	19;000 lbs / 8;618 kg
Average Work Height	81″ / 205.74 cm
Power	24 volt
Charging Voltage	110v
Average Lift Cycles	18-22
Handle Design Pallet	Jack
Carriage Type	Adjustable
Min Wheel Diameter	5″ / 12.7 cm
Max Wheel Diameter	24.5″ / 62.23 cm
Max Tire Diameter	47″ / 119.38 cm
Configuration	2-4-6-8
